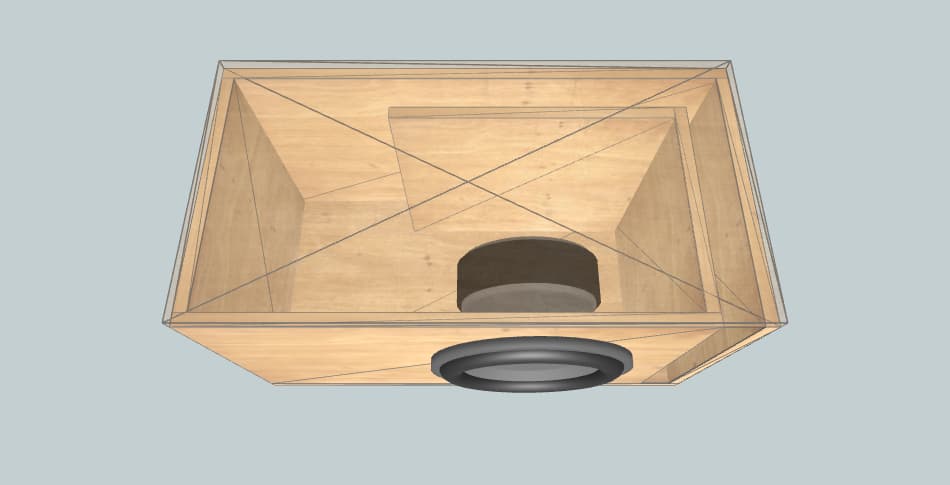

Box External Dimensions Width × Height × Depth |
35.43" × 14.96" × 27.61" |
| Material Thickness | 0.63" |
| Net Internal Volume | 7.06 ft3 |
| Tuning Frequency | 28 Hz |
| Port Area | 23.3 inch2 |
| Port Inlet Width × Height |
1.70" × 13.70" |
| Port Length | 5.43" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 35.43" × 27.61" | 2 |
| Front | 33.11" × 13.70" | 1 |
| Rear | 35.43" × 13.70" | 1 |
| Left | 26.35" × 13.70" | 1 |
| Right | 26.98" × 13.70" | 1 |
| Port | 4.80" × 13.70" | 1 |
