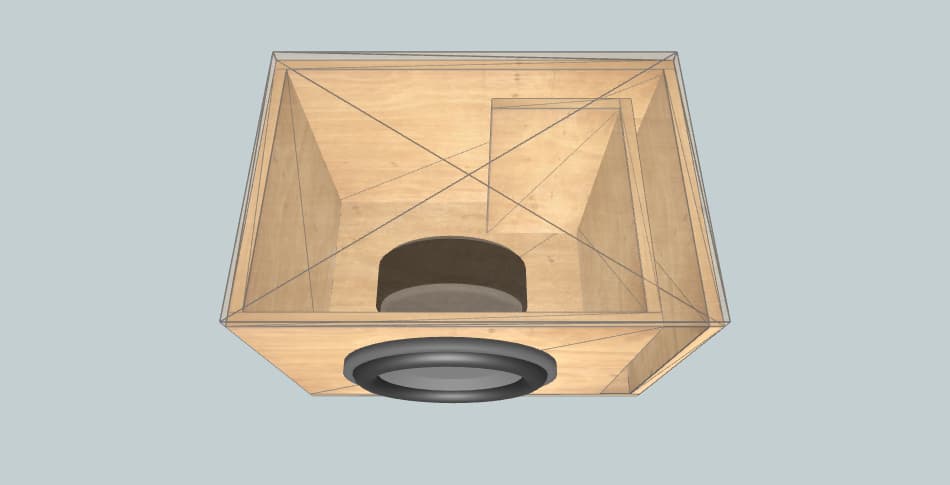

Subwoofer Box Specifications
Enclosure Name: Xmaxx 12 In 6000 watt
Subwoofer Brand: American Bass
Subwoofer Size: 12 inch
Subwoofer Count: 3
|
Box External Dimensions Width × Height × Depth |
40.00" × 14.78" × 23.04" |
| Material Thickness | 1.00" |
| Net Internal Volume | 5.00 ft3 |
| Tuning Frequency | 24 Hz |
| Port Area | 41.3 inch2 |
| Port Inlet Width × Height |
3.23" × 12.78" |
| Port Length | 30.73" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 40.00" × 23.04" | 2 |
| Front / Rear | 40.00" × 12.78" | 2 |
| Left | 21.04" × 12.78" | 1 |
| Right | 16.81" × 12.78" | 1 |
| Port | 30.73" × 12.78" | 1 |
