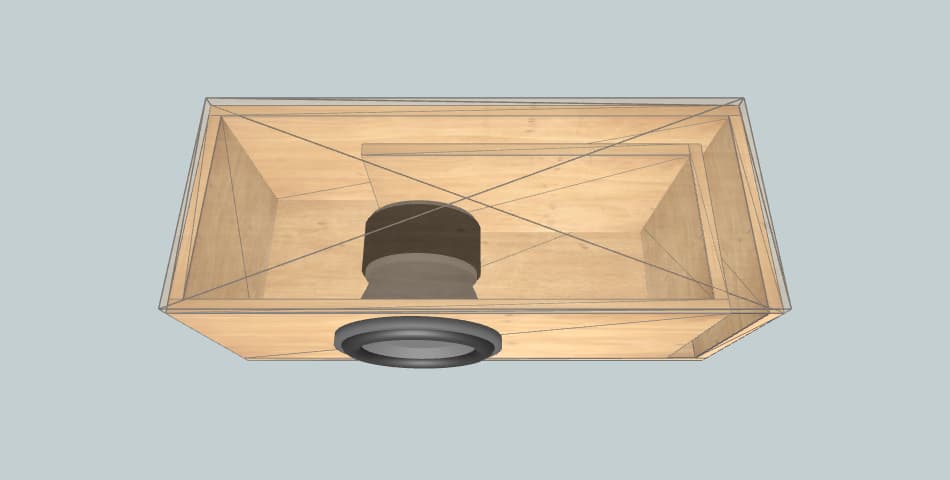

Box External Dimensions Width × Height × Depth |
22.83" × 11.02" × 13.87" |
| Material Thickness | 0.79" |
| Net Internal Volume | 1.20 ft3 |
| Tuning Frequency | 38 Hz |
| Port Area | 14.7 inch2 |
| Pipe Inner Diameter | 4.33" |
| Pipe Length | 18.62" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 22.83" × 13.87" | 2 |
| Front / Rear | 22.83" × 9.45" | 2 |
| Left / Right | 12.30" × 9.45" | 2 |
