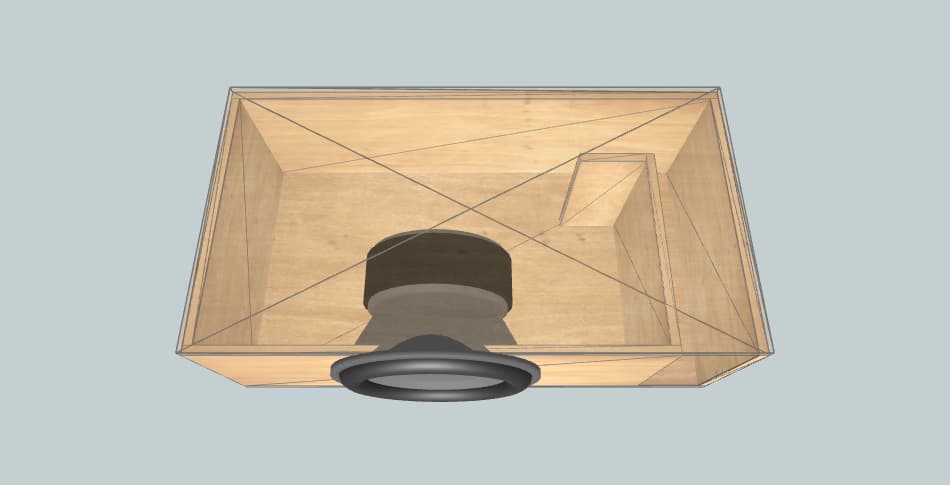

Box External Dimensions Width × Height × Depth |
35.00" × 26.00" × 23.30" |
| Material Thickness | 1.00" |
| Net Internal Volume | 7.50 ft3 |
| Tuning Frequency | 30 Hz |
| Port Area | 108.8 inch2 |
| Port Inlet Width × Height |
4.53" × 24.00" |
| Port Length | 30.67" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 35.00" × 23.30" | 2 |
| Front / Rear | 35.00" × 24.00" | 2 |
| Left | 21.30" × 24.00" | 1 |
| Right | 15.77" × 24.00" | 1 |
| Port | 30.67" × 24.00" | 1 |
