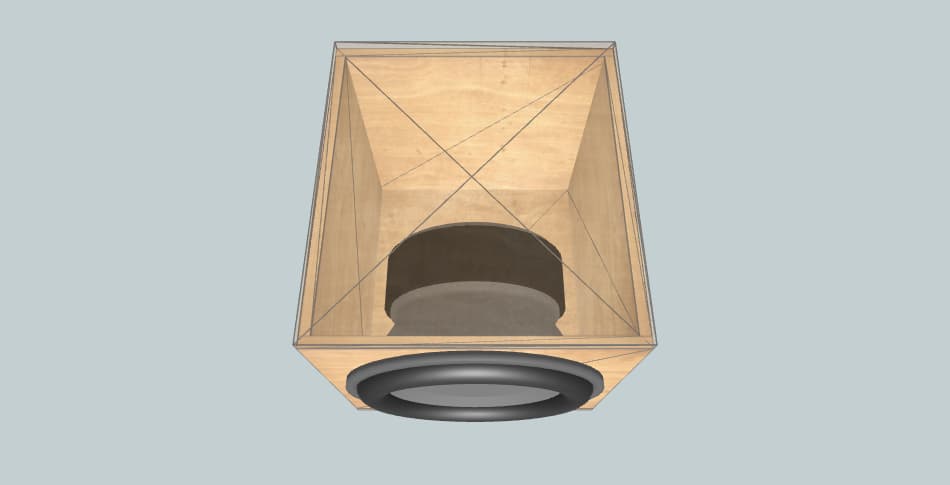

Box External Dimensions Width × Height × Depth |
37.00" × 20.00" × 19.34" |
| Material Thickness | 1.00" |
| Net Internal Volume | 5.65 ft3 |
| Tuning Frequency | 30 Hz |
| Port Area | 19.6 inch2 |
| Pipe Inner Diameter | 5.00" |
| Pipe Length | 15.88" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 37.00" × 19.34" | 2 |
| Front / Rear | 37.00" × 18.00" | 2 |
| Left / Right | 17.34" × 18.00" | 2 |
