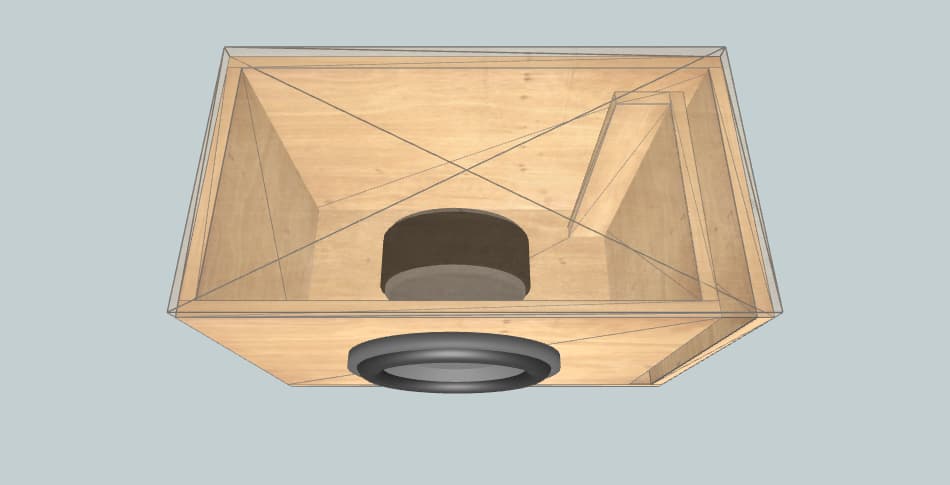

Box External Dimensions Width × Height × Depth |
29.00" × 12.00" × 16.94" |
| Material Thickness | 0.75" |
| Net Internal Volume | 2.00 ft3 |
| Tuning Frequency | 34 Hz |
| Port Area | 30 inch2 |
| Port Inlet Width × Height |
2.85" × 10.50" |
| Port Length | 28.28" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 29.00" × 16.94" | 2 |
| Front | 25.40" × 10.50" | 1 |
| Rear | 29.00" × 10.50" | 1 |
| Left | 15.44" × 10.50" | 1 |
| Right | 16.19" × 10.50" | 1 |
| Port | 12.59" × 10.50" | 1 |
| Port | 11.34" × 10.50" | 1 |
