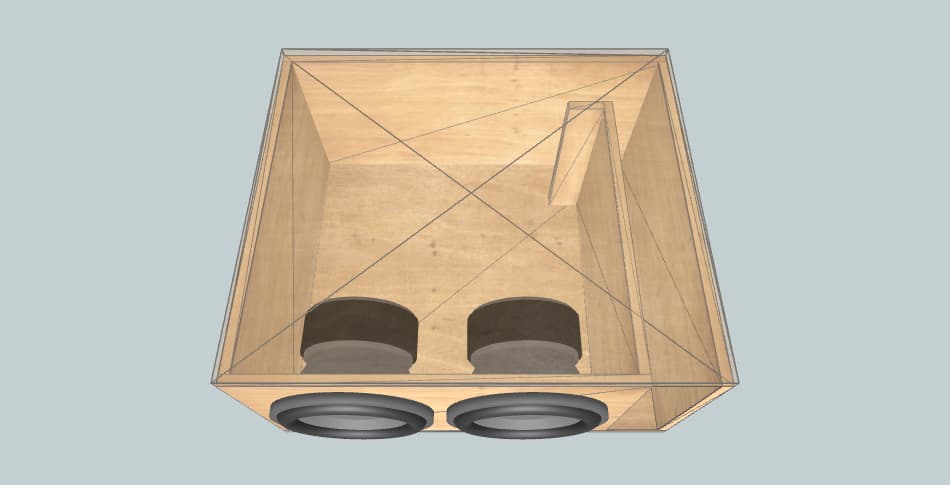

Box External Dimensions Width × Height × Depth |
19.69" × 13.78" × 11.99" |
| Material Thickness | 0.47" |
| Net Internal Volume | 1.41 ft3 |
| Tuning Frequency | 55 Hz |
| Port Area | 23.3 inch2 |
| Port Inlet Width × Height |
1.81" × 12.83" |
| Port Length | 8.77" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 19.69" × 11.99" | 2 |
| Front | 17.40" × 12.83" | 1 |
| Rear | 19.69" × 12.83" | 1 |
| Left | 11.05" × 12.83" | 1 |
| Right | 11.52" × 12.83" | 1 |
| Port | 8.30" × 12.83" | 1 |
