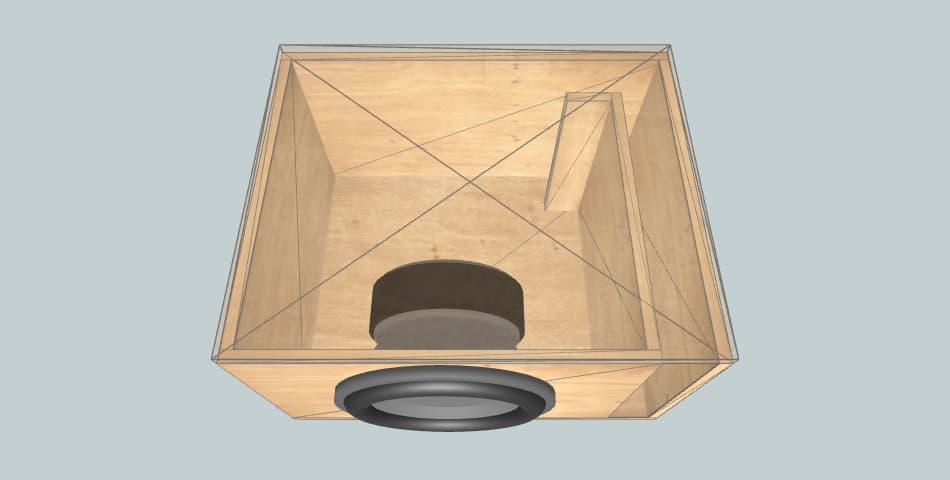

Box External Dimensions Width × Height × Depth |
25.59" × 14.96" × 13.70" |
| Material Thickness | 0.71" |
| Net Internal Volume | 2.00 ft3 |
| Tuning Frequency | 30 Hz |
| Port Area | 14.7 inch2 |
| Pipe Inner Diameter | 4.33" |
| Pipe Length | 17.79" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 25.59" × 13.70" | 2 |
| Front / Rear | 25.59" × 13.54" | 2 |
| Left / Right | 12.28" × 13.54" | 2 |
