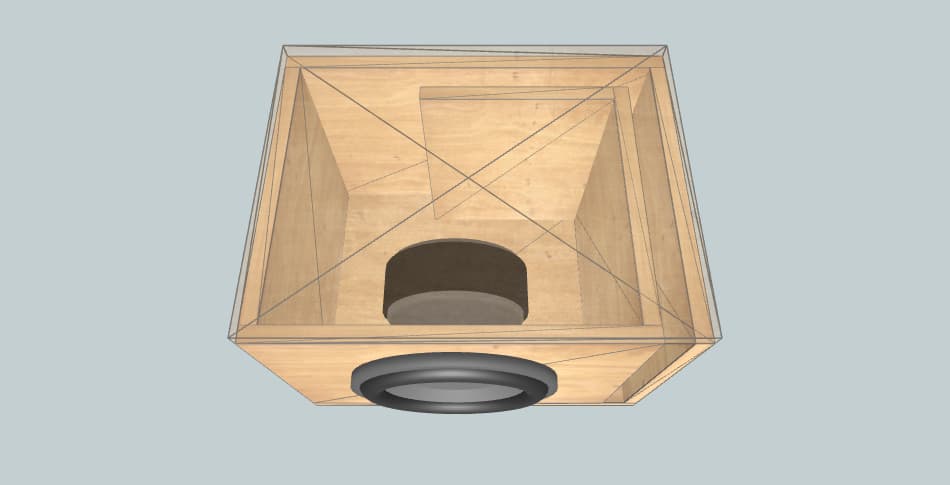

Box External Dimensions Width × Height × Depth |
30.00" × 12.00" × 19.36" |
| Material Thickness | 0.75" |
| Net Internal Volume | 2.50 ft3 |
| Tuning Frequency | 36 Hz |
| Port Area | 30 inch2 |
| Port Inlet Width × Height |
2.85" × 10.50" |
| Port Length | 18.25" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 30.00" × 19.36" | 2 |
| Front / Rear | 30.00" × 10.50" | 2 |
| Left | 17.87" × 10.50" | 1 |
| Right | 14.26" × 10.50" | 1 |
| Port | 18.25" × 10.50" | 1 |
