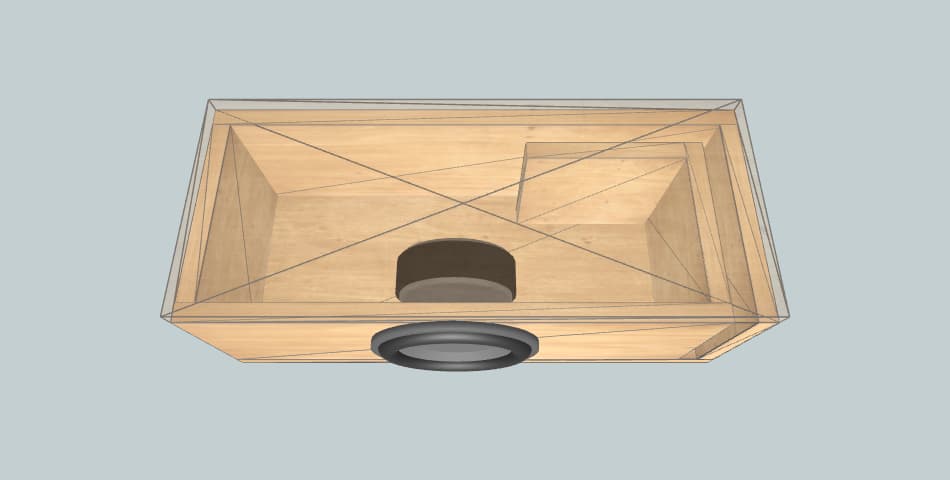

Box External Dimensions Width × Height × Depth |
34.00" × 14.40" × 20.84" |
| Material Thickness | 0.70" |
| Net Internal Volume | 4.00 ft3 |
| Tuning Frequency | 34 Hz |
| Port Area | 45.5 inch2 |
| Port Inlet Width × Height |
3.50" × 13.00" |
| Port Length | 18.26" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 34.00" × 20.84" | 2 |
| Front | 29.80" × 13.00" | 1 |
| Rear | 34.00" × 13.00" | 1 |
| Left | 19.44" × 13.00" | 1 |
| Right | 20.14" × 13.00" | 1 |
| Port | 15.24" × 13.00" | 1 |
