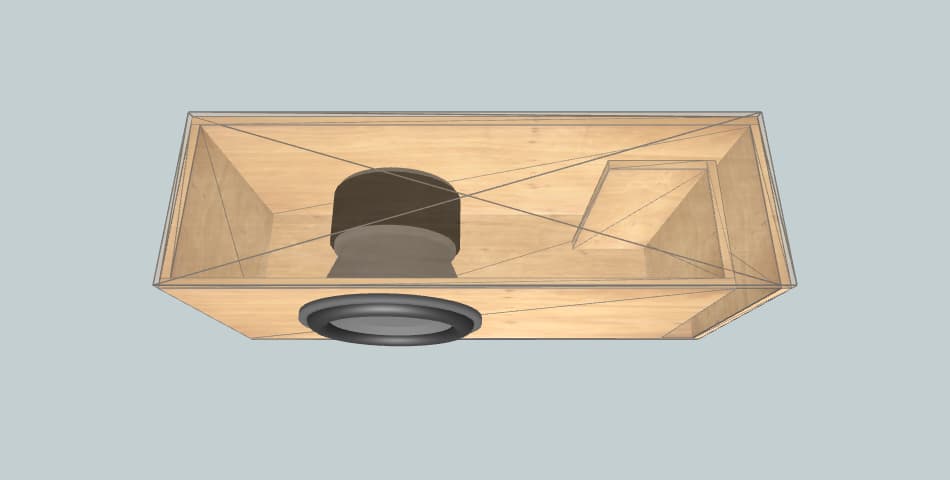

Subwoofer Box Specifications
Enclosure Name: ZVX 15 08 Sante Fe
Subwoofer Brand: Skar Audio
Subwoofer Size: 15 inch
Subwoofer Count: 1
|
Box External Dimensions Width × Height × Depth |
44.00" × 19.00" × 13.82" |
| Material Thickness | 0.71" |
| Net Internal Volume | 4.50 ft3 |
| Tuning Frequency | 33 Hz |
| Port Area | 55 inch2 |
| Port Inlet Width × Height |
3.13" × 17.58" |
| Port Length | 21.19" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 44.00" × 13.82" | 2 |
| Front | 40.16" × 17.58" | 1 |
| Rear | 44.00" × 17.58" | 1 |
| Left | 12.41" × 17.58" | 1 |
| Right | 13.11" × 17.58" | 1 |
| Port | 9.28" × 17.58" | 1 |
| Port | 7.36" × 17.58" | 1 |
