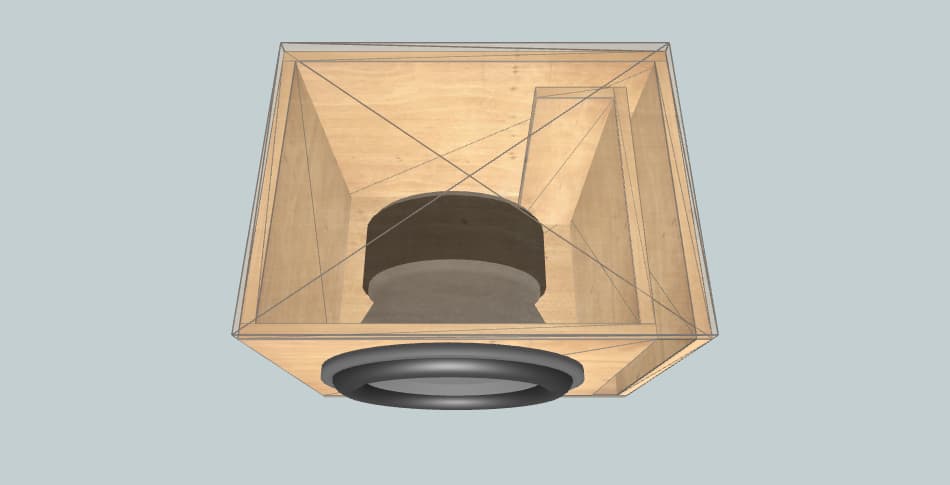

Box External Dimensions Width × Height × Depth |
21.26" × 19.69" × 22.55" |
| Material Thickness | 0.98" |
| Net Internal Volume | 3.18 ft3 |
| Tuning Frequency | 26 Hz |
| Port Area | 31 inch2 |
| Port Inlet Width × Height |
1.75" × 17.72" |
| Port Length | 32.06" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 21.26" × 22.55" | 2 |
| Front | 18.53" × 17.72" | 1 |
| Rear | 21.26" × 17.72" | 1 |
| Left | 20.58" × 17.72" | 1 |
| Right | 21.56" × 17.72" | 1 |
| Port | 18.83" × 17.72" | 1 |
| Port | 9.52" × 17.72" | 1 |
