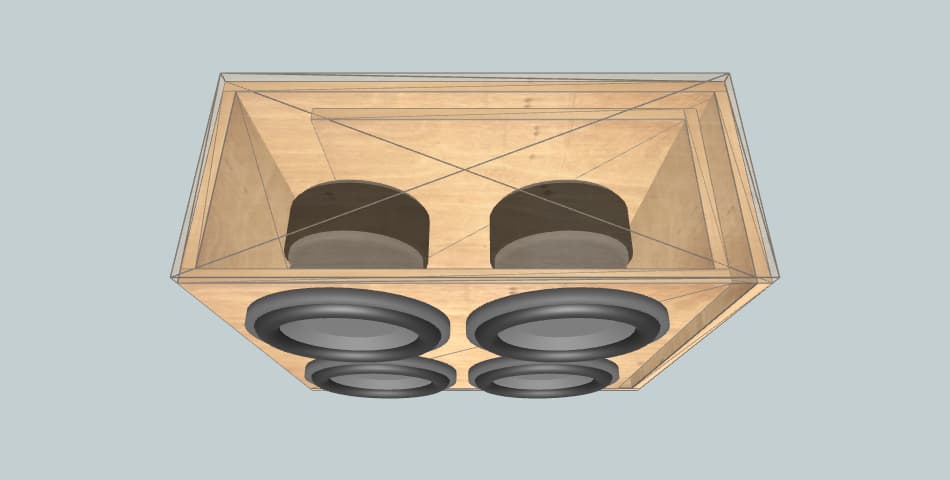

Box External Dimensions Width × Height × Depth |
23.62" × 13.07" × 14.24" |
| Material Thickness | 0.63" |
| Net Internal Volume | 1.59 ft3 |
| Tuning Frequency | 36 Hz |
| Port Area | 23.3 inch2 |
| Port Inlet Width × Height |
1.97" × 11.81" |
| Port Length | 24.52" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 23.62" × 14.24" | 2 |
| Front | 21.02" × 11.81" | 1 |
| Rear | 23.62" × 11.81" | 1 |
| Left | 12.98" × 11.81" | 1 |
| Right | 13.61" × 11.81" | 1 |
| Port | 11.02" × 11.81" | 1 |
| Port | 10.27" × 11.81" | 1 |
