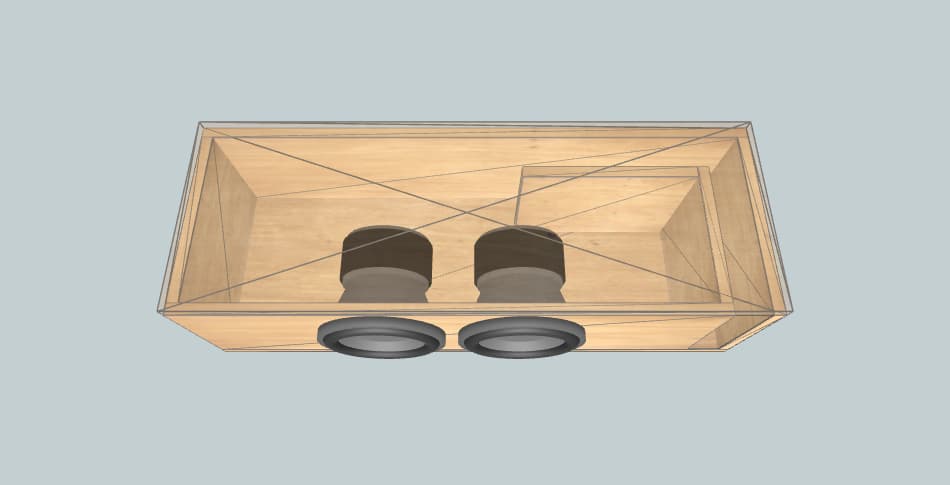

Box External Dimensions Width × Height × Depth |
35.43" × 14.96" × 8.20" |
| Material Thickness | 0.71" |
| Net Internal Volume | 1.41 ft3 |
| Tuning Frequency | 40 Hz |
| Port Area | 23.3 inch2 |
| Port Inlet Width × Height |
1.72" × 13.54" |
| Port Length | 21.82" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 35.43" × 8.20" | 2 |
| Front | 33.01" × 13.54" | 1 |
| Rear | 35.43" × 13.54" | 1 |
| Left | 6.78" × 13.54" | 1 |
| Right | 7.49" × 13.54" | 1 |
| Port | 5.07" × 13.54" | 1 |
| Port | 13.62" × 13.54" | 1 |
