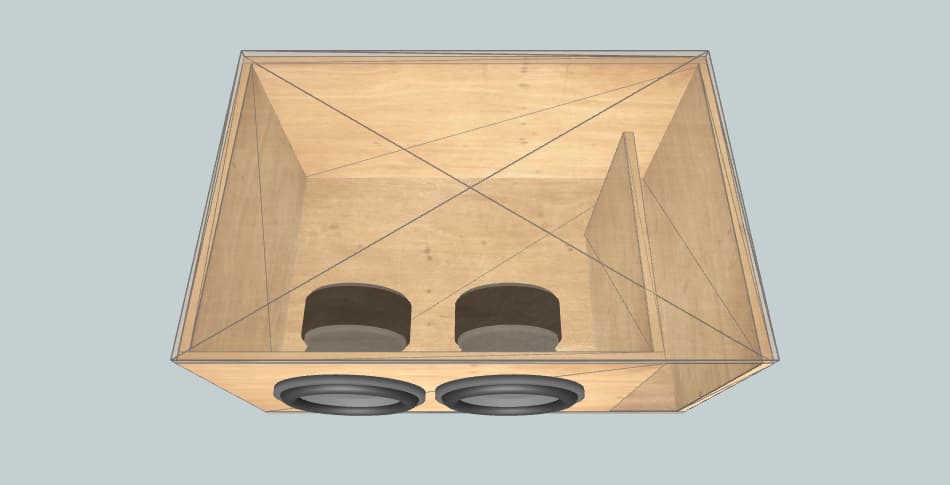

Box External Dimensions Width × Height × Depth |
19.00" × 15.00" × 12.41" |
| Material Thickness | 0.70" |
| Net Internal Volume | 1.49 ft3 |
| Tuning Frequency | 35 Hz |
| Port Area | 7.1 inch2 |
| Pipe Inner Diameter | 3.00" |
| Pipe Length | 7.46" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 19.00" × 12.41" | 2 |
| Front / Rear | 19.00" × 13.60" | 2 |
| Left / Right | 11.00" × 13.60" | 2 |
