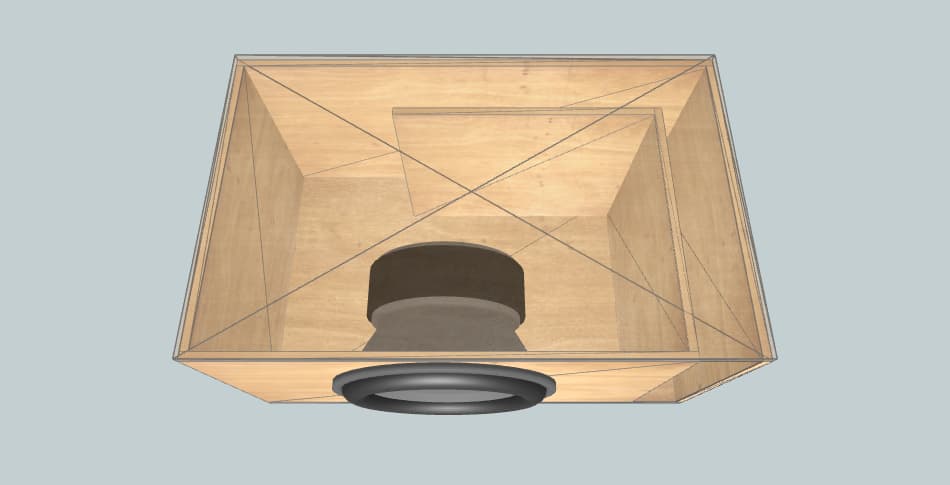

Box External Dimensions Width × Height × Depth |
23.62" × 23.62" × 22.40" |
| Material Thickness | 0.75" |
| Net Internal Volume | 5.62 ft3 |
| Tuning Frequency | 40 Hz |
| Port Area | 23.3 inch2 |
| Port Inlet Width × Height |
1.05" × 22.13" |
| Port Length | 1.09" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 23.62" × 22.40" | 2 |
| Front | 21.82" × 22.13" | 1 |
| Rear | 23.62" × 22.13" | 1 |
| Left | 20.91" × 22.13" | 1 |
| Right | 21.65" × 22.13" | 1 |
| Port | 0.34" × 22.13" | 1 |
