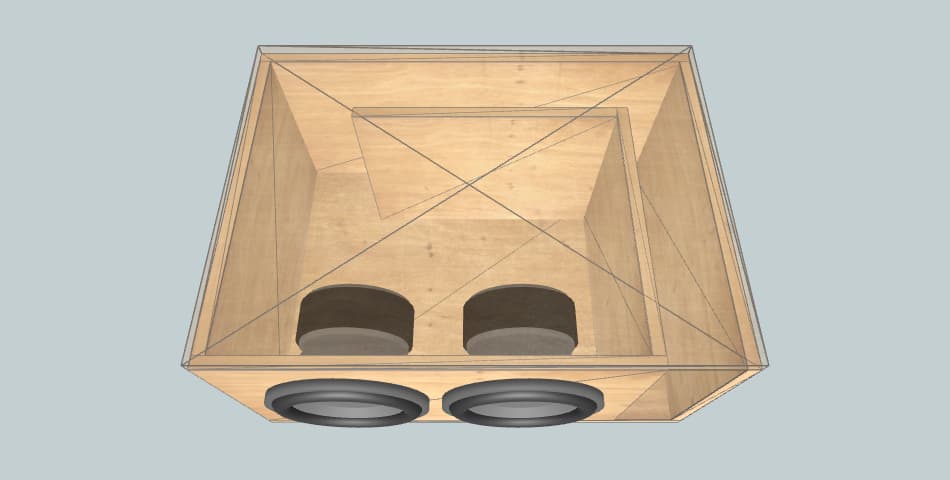

Box External Dimensions Width × Height × Depth |
31.50" × 10.43" × 16.57" |
| Material Thickness | 0.59" |
| Net Internal Volume | 1.77 ft3 |
| Tuning Frequency | 40 Hz |
| Port Area | 37.2 inch2 |
| Port Inlet Width × Height |
4.02" × 9.25" |
| Port Length | 28.02" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 31.50" × 16.57" | 2 |
| Front | 26.89" × 9.25" | 1 |
| Rear | 31.50" × 9.25" | 1 |
| Left | 15.39" × 9.25" | 1 |
| Right | 15.98" × 9.25" | 1 |
| Port | 11.37" × 9.25" | 1 |
| Port | 11.44" × 9.25" | 1 |
