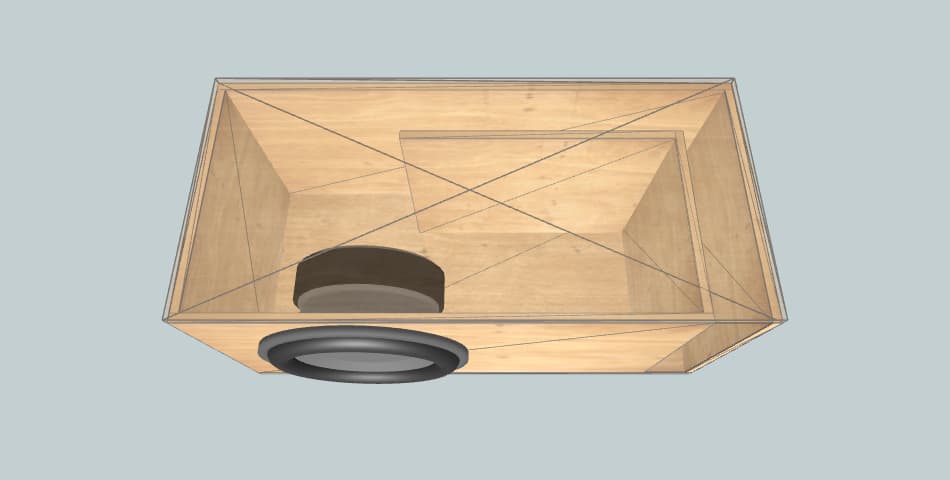

Box External Dimensions Width × Height × Depth |
45.28" × 17.72" × 30.38" |
| Material Thickness | 1.18" |
| Net Internal Volume | 9.89 ft3 |
| Tuning Frequency | 28 Hz |
| Port Area | 77.5 inch2 |
| Port Inlet Width × Height |
5.05" × 15.35" |
| Port Length | 16.19" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 45.28" × 30.38" | 2 |
| Front | 39.05" × 15.35" | 1 |
| Rear | 45.28" × 15.35" | 1 |
| Left | 28.02" × 15.35" | 1 |
| Right | 29.20" × 15.35" | 1 |
| Port | 15.00" × 15.35" | 1 |
