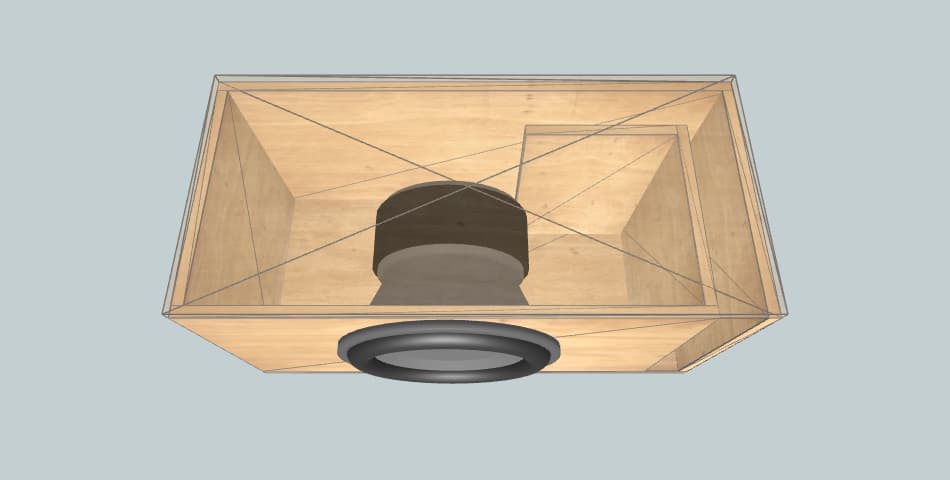

Subwoofer Box Specifications
Enclosure Name: Lc 15
Subwoofer Brand: Pride
Subwoofer Size: 15 inch
Subwoofer Count: 1
|
Box External Dimensions Width × Height × Depth |
30.31" × 16.14" × 20.67" |
| Material Thickness | 0.71" |
| Net Internal Volume | 3.88 ft3 |
| Tuning Frequency | 30 Hz |
| Port Area | 46.5 inch2 |
| Port Inlet Width × Height |
3.16" × 14.72" |
| Port Length | 27.50" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 30.31" × 20.67" | 2 |
| Front | 26.45" × 14.72" | 1 |
| Rear | 30.31" × 14.72" | 1 |
| Left | 19.25" × 14.72" | 1 |
| Right | 19.96" × 14.72" | 1 |
| Port | 16.09" × 14.72" | 1 |
| Port | 6.83" × 14.72" | 1 |
