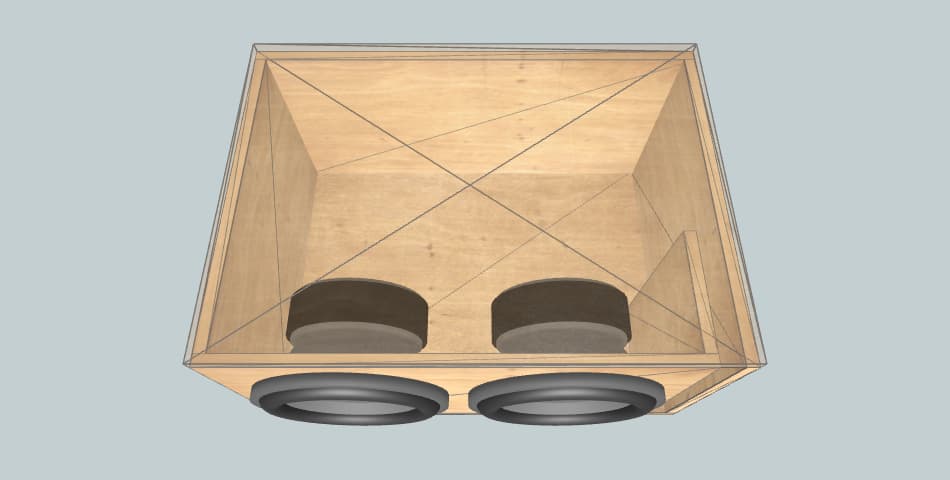

Box External Dimensions Width × Height × Depth |
22.05" × 18.11" × 13.80" |
| Material Thickness | 0.94" |
| Net Internal Volume | 1.75 ft3 |
| Tuning Frequency | 35 Hz |
| Port Area | 24.8 inch2 |
| Port Inlet Width × Height |
1.53" × 16.22" |
| Port Length | 25.05" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 22.05" × 13.80" | 2 |
| Front | 19.57" × 16.22" | 1 |
| Rear | 22.05" × 16.22" | 1 |
| Left | 11.91" × 16.22" | 1 |
| Right | 12.85" × 16.22" | 1 |
| Port | 10.38" × 16.22" | 1 |
| Port | 11.26" × 16.22" | 1 |
