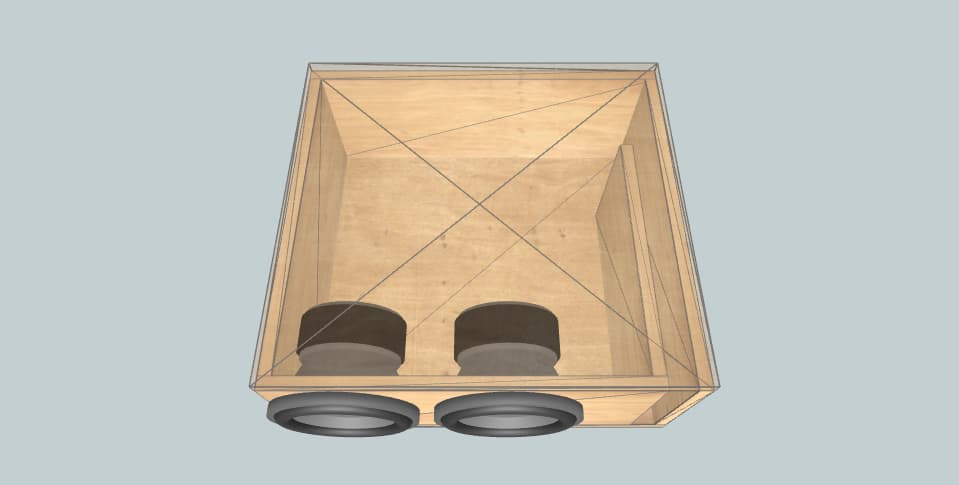

Subwoofer Box Specifications
Enclosure Name: Mike C5 Corvette
Subwoofer Size: 8 inch
Subwoofer Count: 2
|
Box External Dimensions Width × Height × Depth |
22.00" × 9.75" × 20.46" |
| Material Thickness | 0.70" |
| Net Internal Volume | 1.70 ft3 |
| Tuning Frequency | 32 Hz |
| Port Area | 12.2 inch2 |
| Port Inlet Width × Height |
1.46" × 8.35" |
| Port Length | 14.57" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 22.00" × 20.46" | 2 |
| Front | 19.84" × 8.35" | 1 |
| Rear | 22.00" × 8.35" | 1 |
| Left | 19.06" × 8.35" | 1 |
| Right | 19.76" × 8.35" | 1 |
| Port | 13.87" × 8.35" | 1 |
