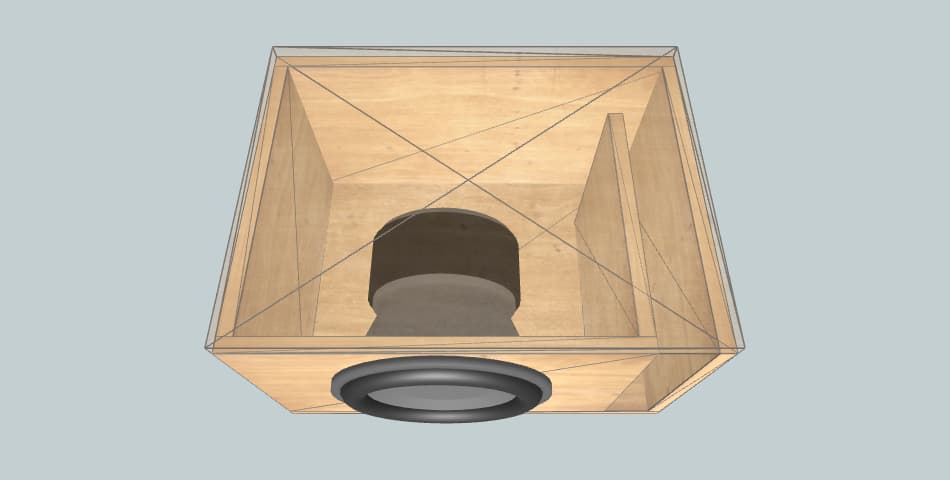

Box External Dimensions Width × Height × Depth |
26.00" × 19.00" × 19.54" |
| Material Thickness | 1.00" |
| Net Internal Volume | 3.40 ft3 |
| Tuning Frequency | 33 Hz |
| Port Area | 40 inch2 |
| Port Inlet Width × Height |
2.35" × 17.00" |
| Port Length | 21.37" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 26.00" × 19.54" | 2 |
| Front | 22.65" × 17.00" | 1 |
| Rear | 26.00" × 17.00" | 1 |
| Left | 17.54" × 17.00" | 1 |
| Right | 18.54" × 17.00" | 1 |
| Port | 15.18" × 17.00" | 1 |
| Port | 1.84" × 17.00" | 1 |
