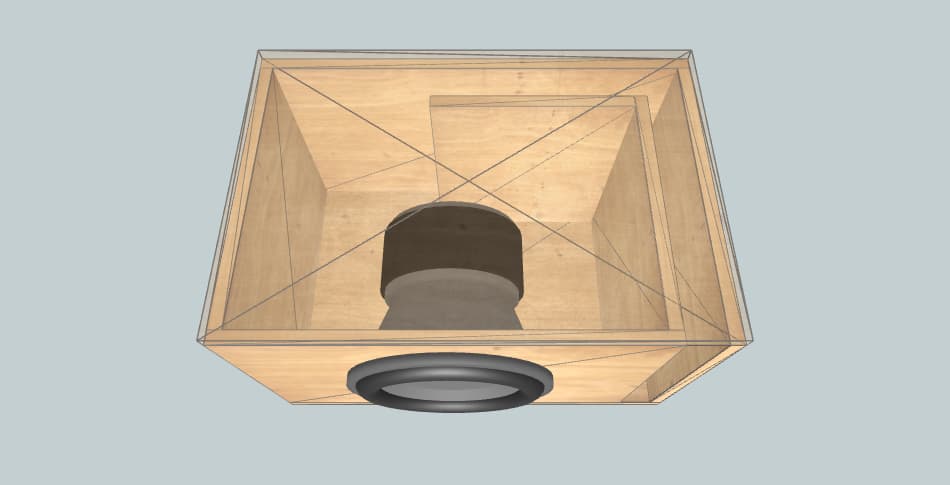

Box External Dimensions Width × Height × Depth |
17.00" × 16.50" × 25.61" |
| Material Thickness | 0.75" |
| Net Internal Volume | 2.20 ft3 |
| Tuning Frequency | 31 Hz |
| Port Area | 32 inch2 |
| Port Inlet Width × Height |
2.13" × 15.00" |
| Port Length | 33.85" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 17.00" × 25.61" | 2 |
| Front | 14.12" × 15.00" | 1 |
| Rear | 17.00" × 15.00" | 1 |
| Left | 24.11" × 15.00" | 1 |
| Right | 24.86" × 15.00" | 1 |
| Port | 21.98" × 15.00" | 1 |
| Port | 8.25" × 15.00" | 1 |
