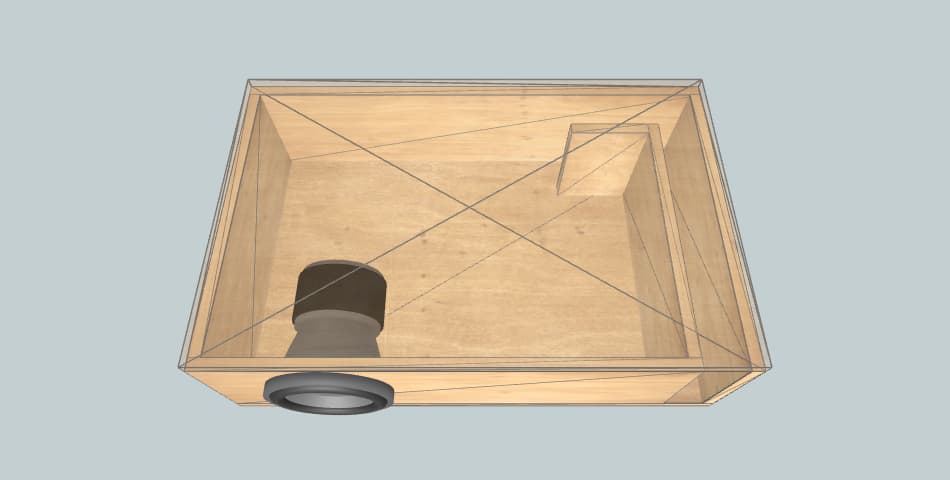

Box External Dimensions Width × Height × Depth |
8.66" × 11.02" × 8.91" |
| Material Thickness | 0.71" |
| Net Internal Volume | 0.28 ft3 |
| Tuning Frequency | 75 Hz |
| Port Area | 1.8 inch2 |
| Pipe Inner Diameter | 1.50" |
| Pipe Length | 1.51" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 8.66" × 8.91" | 2 |
| Front / Rear | 8.66" × 9.61" | 2 |
| Left / Right | 7.49" × 9.61" | 2 |
