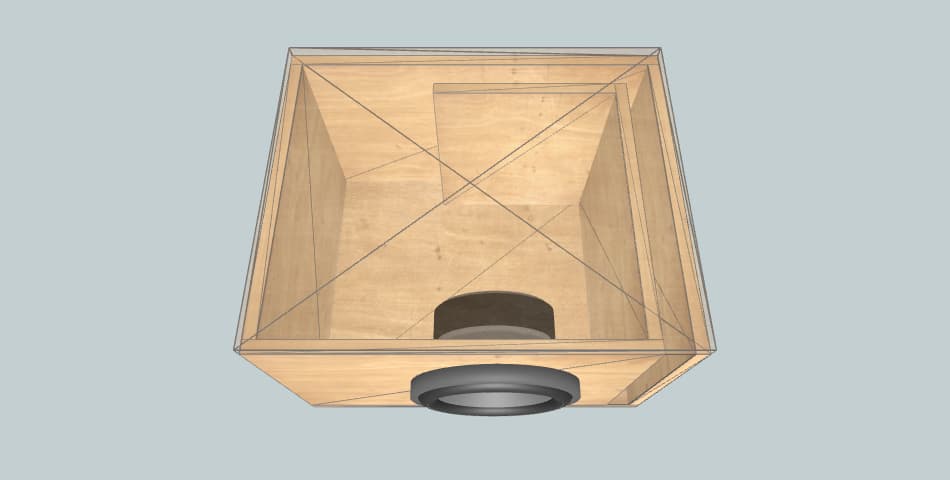

Box External Dimensions Width × Height × Depth |
27.56" × 15.75" × 11.45" |
| Material Thickness | 0.63" |
| Net Internal Volume | 1.59 ft3 |
| Tuning Frequency | 35 Hz |
| Port Area | 27.9 inch2 |
| Port Inlet Width × Height |
1.93" × 14.49" |
| Port Length | 32.15" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 27.56" × 11.45" | 2 |
| Front | 25.00" × 14.49" | 1 |
| Rear | 27.56" × 14.49" | 1 |
| Left | 10.19" × 14.49" | 1 |
| Right | 10.82" × 14.49" | 1 |
| Port | 8.26" × 14.49" | 1 |
| Port | 20.70" × 14.49" | 1 |
