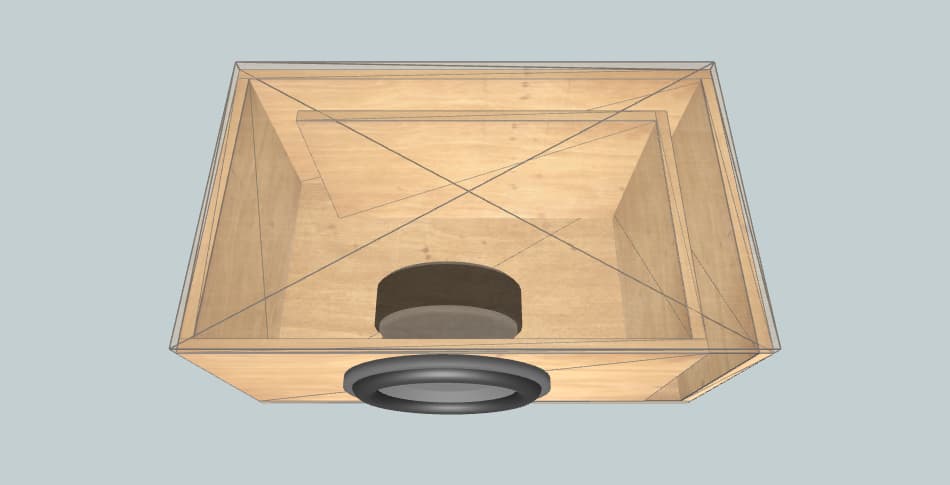

Subwoofer Box Specifications
Enclosure Name: U series 12 dual 3.5 GK
Subwoofer Brand: Sundown Audio
Subwoofer Size: 12 inch
Subwoofer Count: 2
|
Box External Dimensions Width × Height × Depth |
36.00" × 15.00" × 19.50" |
| Material Thickness | 0.75" |
| Net Internal Volume | 3.56 ft3 |
| Tuning Frequency | 33 Hz |
| Port Area | 54 inch2 |
| Port Inlet Width × Height |
4.00" × 13.50" |
| Port Length | 28.55" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 36.00" × 19.50" | 2 |
| Front | 31.25" × 13.50" | 1 |
| Rear | 36.00" × 13.50" | 1 |
| Left | 18.01" × 13.50" | 1 |
| Right | 18.76" × 13.50" | 1 |
| Port | 14.01" × 13.50" | 1 |
| Port | 9.04" × 13.50" | 1 |
