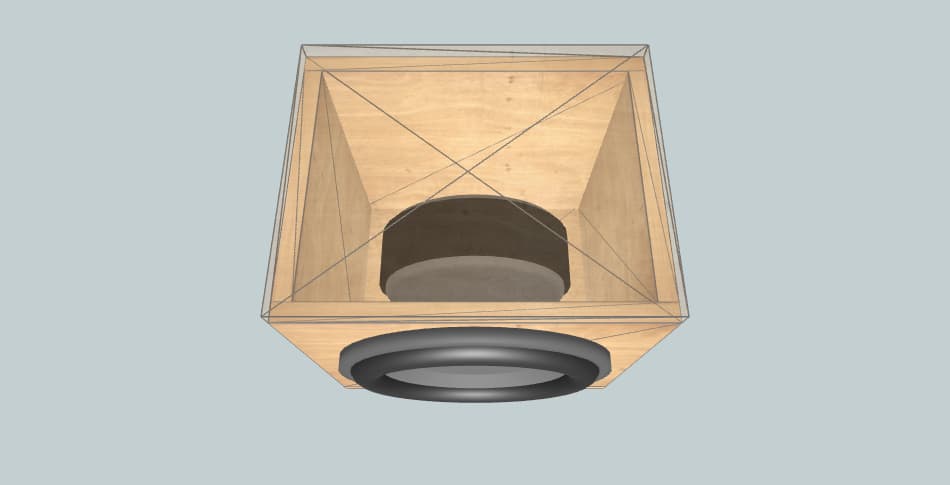

Box External Dimensions Width × Height × Depth |
31.50" × 13.78" × 16.67" |
| Material Thickness | 0.75" |
| Net Internal Volume | 2.83 ft3 |
| Tuning Frequency | 27 Hz |
| Port Area | 23.3 inch2 |
| Port Inlet Width × Height |
1.89" × 12.28" |
| Port Length | 24.52" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 31.50" × 16.67" | 2 |
| Front | 28.85" × 12.28" | 1 |
| Rear | 31.50" × 12.28" | 1 |
| Left | 15.18" × 12.28" | 1 |
| Right | 15.93" × 12.28" | 1 |
| Port | 13.28" × 12.28" | 1 |
| Port | 7.84" × 12.28" | 1 |
