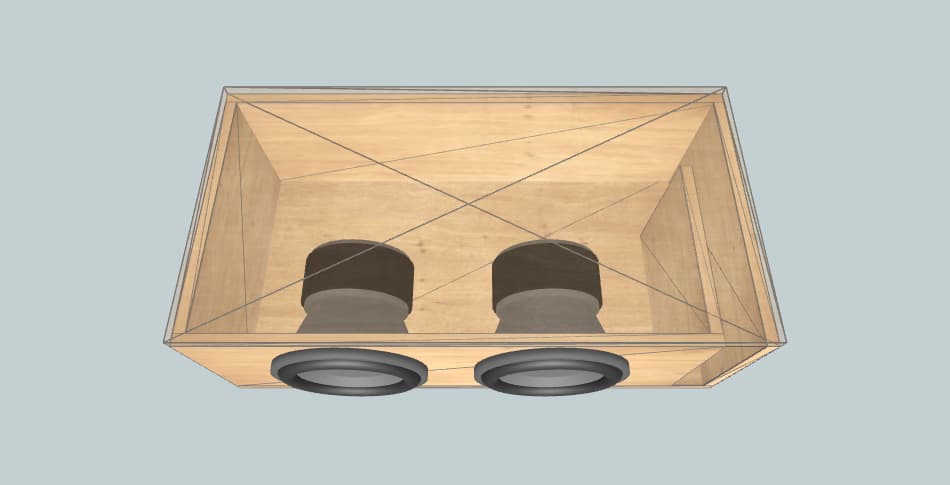

Box External Dimensions Width × Height × Depth |
26.77" × 11.81" × 15.53" |
| Material Thickness | 0.63" |
| Net Internal Volume | 1.59 ft3 |
| Tuning Frequency | 32 Hz |
| Port Area | 17.1 inch2 |
| Port Inlet Width × Height |
1.61" × 10.55" |
| Port Length | 23.18" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 26.77" × 15.53" | 2 |
| Front | 24.53" × 10.55" | 1 |
| Rear | 26.77" × 10.55" | 1 |
| Left | 14.27" × 10.55" | 1 |
| Right | 14.90" × 10.55" | 1 |
| Port | 12.66" × 10.55" | 1 |
| Port | 7.65" × 10.55" | 1 |
