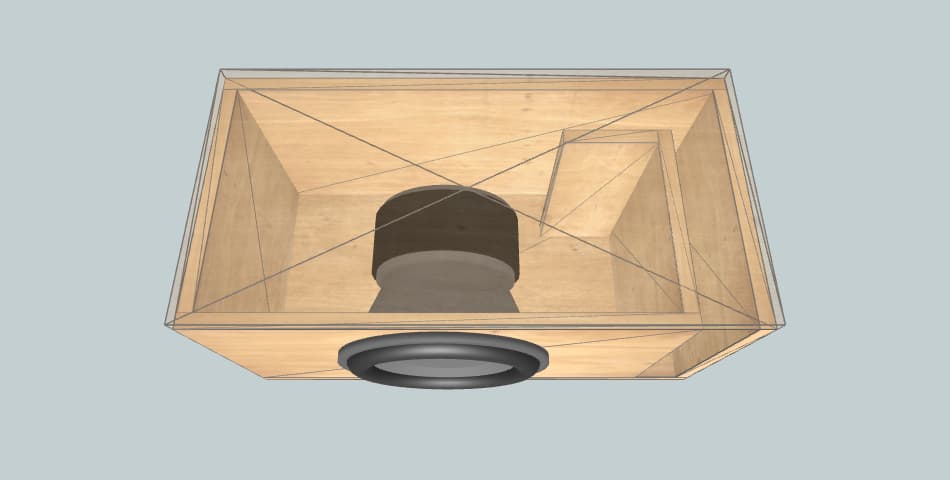

Box External Dimensions Width × Height × Depth |
28.00" × 16.50" × 26.34" |
| Material Thickness | 0.75" |
| Net Internal Volume | 4.15 ft3 |
| Tuning Frequency | 30.1 Hz |
| Port Area | 60 inch2 |
| Port Inlet Width × Height |
4.00" × 15.00" |
| Port Length | 33.53" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 28.00" × 26.34" | 2 |
| Front | 23.25" × 15.00" | 1 |
| Rear | 28.00" × 15.00" | 1 |
| Left | 24.85" × 15.00" | 1 |
| Right | 25.59" × 15.00" | 1 |
| Port | 20.85" × 15.00" | 1 |
| Port | 7.19" × 15.00" | 1 |
