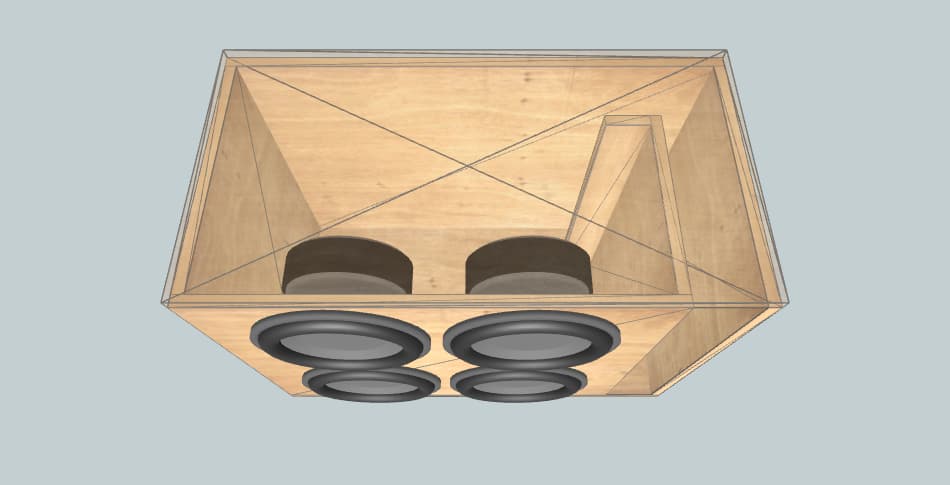

Box External Dimensions Width × Height × Depth |
31.50" × 23.62" × 32.07" |
| Material Thickness | 0.75" |
| Net Internal Volume | 10.59 ft3 |
| Tuning Frequency | 20 Hz |
| Port Area | 54.3 inch2 |
| Port Inlet Width × Height |
2.45" × 22.13" |
| Port Length | 25.49" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 31.50" × 32.07" | 2 |
| Front | 28.30" × 22.13" | 1 |
| Rear | 31.50" × 22.13" | 1 |
| Left | 30.58" × 22.13" | 1 |
| Right | 31.33" × 22.13" | 1 |
| Port | 24.74" × 22.13" | 1 |
