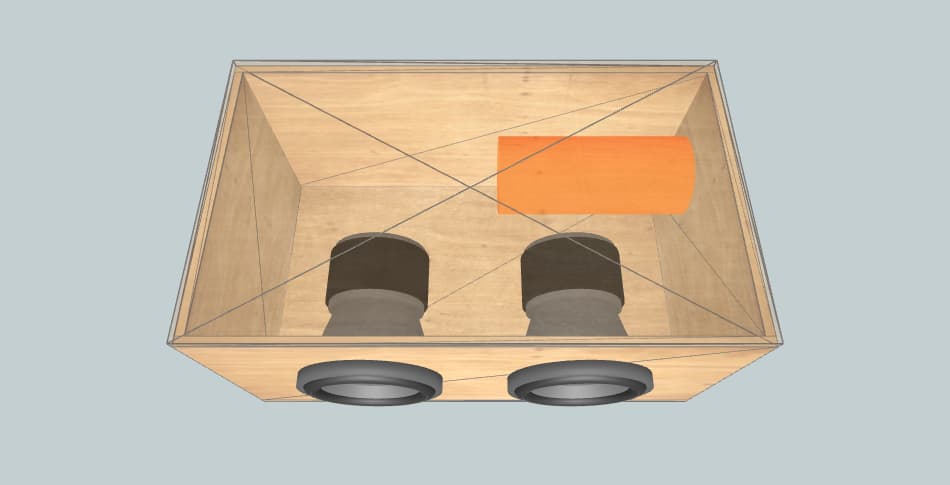

Box External Dimensions Width × Height × Depth |
27.56" × 7.48" × 9.96" |
| Material Thickness | 0.59" |
| Net Internal Volume | 0.64 ft3 |
| Tuning Frequency | 30 Hz |
| Port Area | 7.8 inch2 |
| Port Inlet Width × Height |
1.23" × 6.30" |
| Port Length | 33.08" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 27.56" × 9.96" | 2 |
| Front | 25.74" × 6.30" | 1 |
| Rear | 27.56" × 6.30" | 1 |
| Left | 8.78" × 6.30" | 1 |
| Right | 9.37" × 6.30" | 1 |
| Port | 7.55" × 6.30" | 1 |
| Port | 23.13" × 6.30" | 1 |
