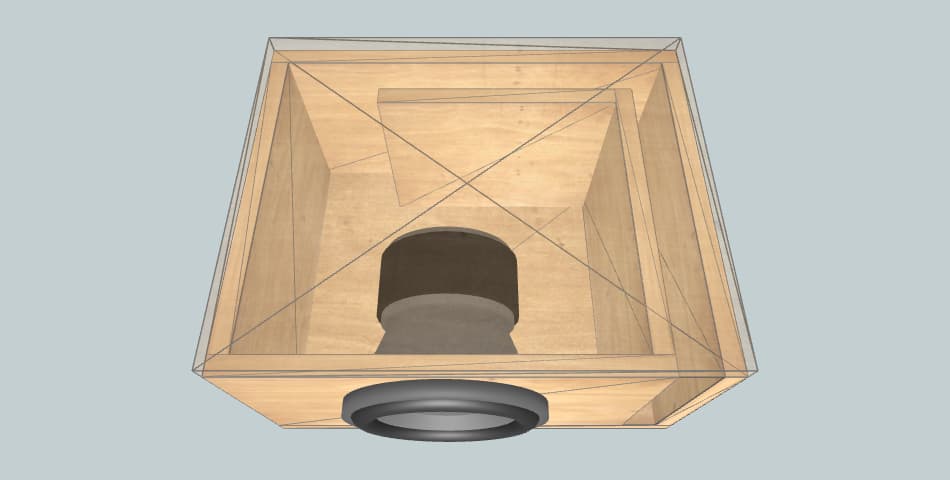

Box External Dimensions Width × Height × Depth |
21.65" × 9.84" × 17.53" |
| Material Thickness | 0.87" |
| Net Internal Volume | 1.30 ft3 |
| Tuning Frequency | 36 Hz |
| Port Area | 14 inch2 |
| Port Inlet Width × Height |
1.72" × 8.11" |
| Port Length | 17.82" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 21.65" × 17.53" | 2 |
| Front / Rear | 21.65" × 8.11" | 2 |
| Left | 15.80" × 8.11" | 1 |
| Right | 13.20" × 8.11" | 1 |
| Port | 17.82" × 8.11" | 1 |
