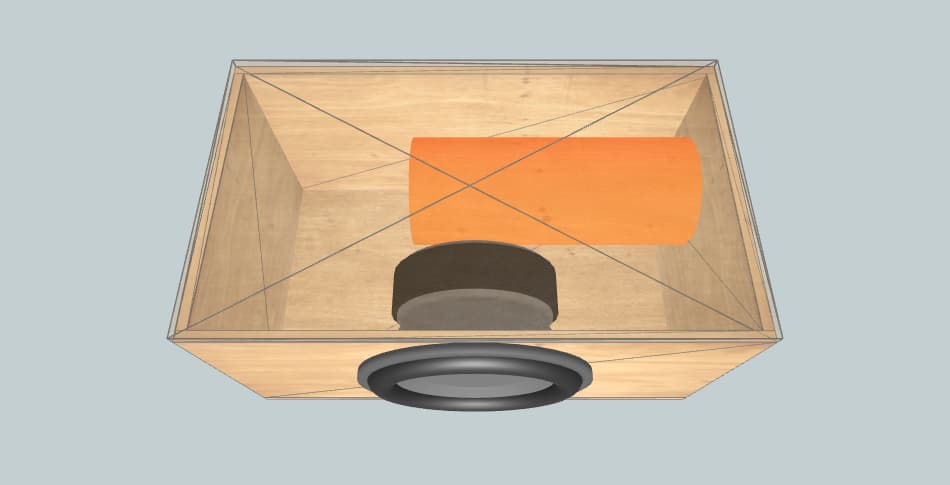

Box External Dimensions Width × Height × Depth |
40.16" × 18.50" × 22.82" |
| Material Thickness | 0.75" |
| Net Internal Volume | 7.77 ft3 |
| Tuning Frequency | 37 Hz |
| Port Area | 62.3 inch2 |
| Pipe Inner Diameter | 6.30" |
| Pipe Length | 9.60" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 40.16" × 22.82" | 2 |
| Front / Rear | 40.16" × 17.01" | 2 |
| Left / Right | 21.33" × 17.01" | 2 |
