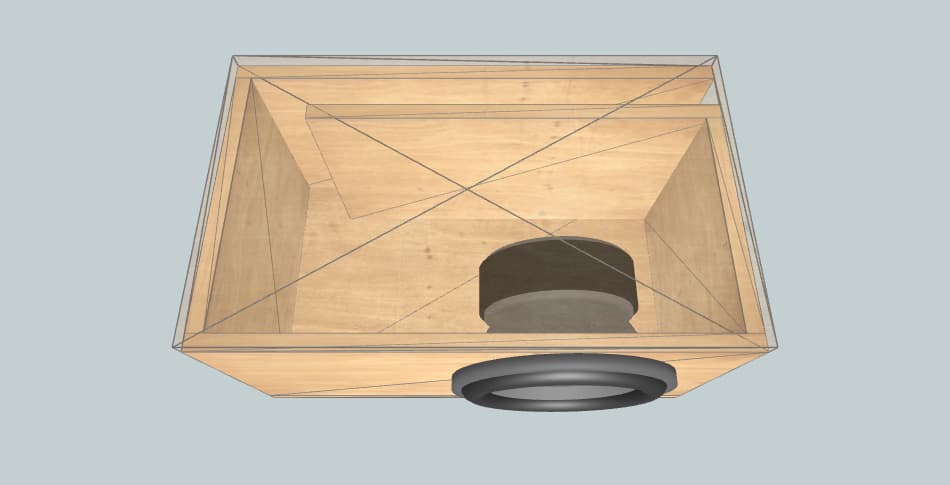

Subwoofer Box Specifications
Enclosure Name: Another big port box
Subwoofer Brand: JL Audio
Subwoofer Size: 10 inch
Subwoofer Count: 2
|
Box External Dimensions Width × Height × Depth |
36.00" × 12.00" × 12.26" |
| Material Thickness | 0.75" |
| Net Internal Volume | 1.50 ft3 |
| Tuning Frequency | 39 Hz |
| Port Area | 30 inch2 |
| Port Inlet Width × Height |
2.85" × 10.50" |
| Port Length | 28.71" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 36.00" × 12.26" | 2 |
| Front / Rear | 36.00" × 10.50" | 2 |
| Left | 10.76" × 10.50" | 1 |
| Right | 7.16" × 10.50" | 1 |
| Port | 28.71" × 10.50" | 1 |
