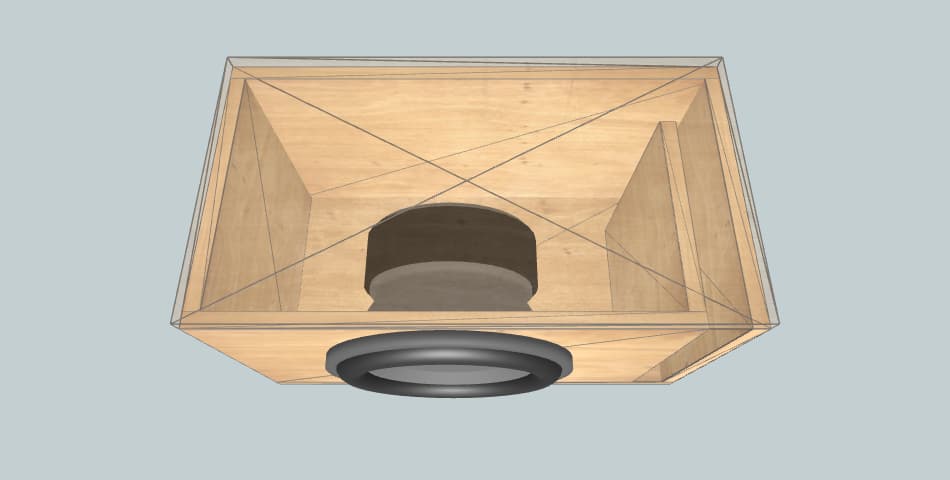

Box External Dimensions Width × Height × Depth |
17.00" × 16.00" × 23.07" |
| Material Thickness | 0.75" |
| Net Internal Volume | 2.00 ft3 |
| Tuning Frequency | 33 Hz |
| Port Area | 29 inch2 |
| Port Inlet Width × Height |
2.00" × 14.50" |
| Port Length | 29.31" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 17.00" × 23.07" | 2 |
| Front | 14.25" × 14.50" | 1 |
| Rear | 17.00" × 14.50" | 1 |
| Left | 21.58" × 14.50" | 1 |
| Right | 22.33" × 14.50" | 1 |
| Port | 19.58" × 14.50" | 1 |
| Port | 6.24" × 14.50" | 1 |
