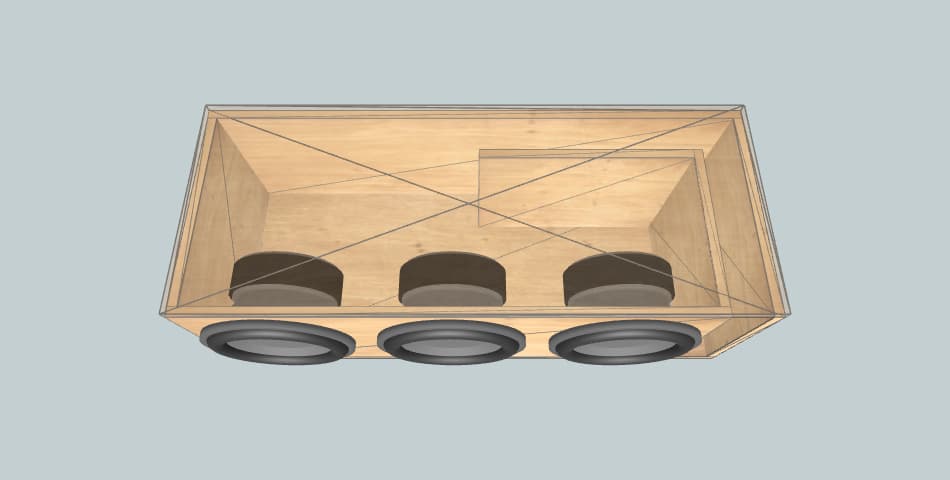

Box External Dimensions Width × Height × Depth |
31.50" × 14.57" × 15.13" |
| Material Thickness | 0.71" |
| Net Internal Volume | 3.00 ft3 |
| Tuning Frequency | 37 Hz |
| Port Area | 23.3 inch2 |
| Port Inlet Width × Height |
1.77" × 13.15" |
| Port Length | 9.35" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 31.50" × 15.13" | 2 |
| Front | 29.02" × 13.15" | 1 |
| Rear | 31.50" × 13.15" | 1 |
| Left | 13.72" × 13.15" | 1 |
| Right | 14.43" × 13.15" | 1 |
| Port | 8.65" × 13.15" | 1 |
