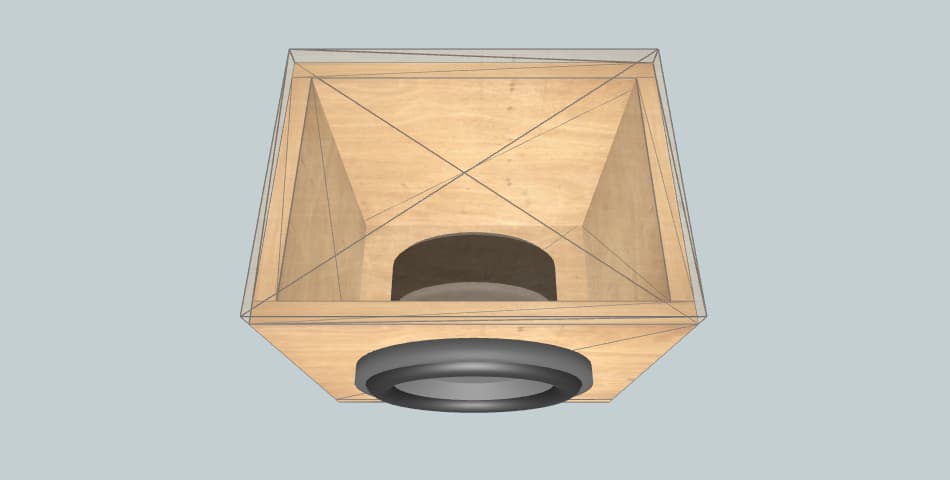

Box External Dimensions Width × Height × Depth |
20.00" × 11.00" × 9.39" |
| Material Thickness | 0.63" |
| Net Internal Volume | 0.68 ft3 |
| Tuning Frequency | 33 Hz |
| Port Area | 8 inch2 |
| Port Inlet Width × Height |
0.82" × 9.74" |
| Port Length | 25.57" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 20.00" × 9.39" | 2 |
| Front | 18.55" × 9.74" | 1 |
| Rear | 20.00" × 9.74" | 1 |
| Left | 8.13" × 9.74" | 1 |
| Right | 8.76" × 9.74" | 1 |
| Port | 7.31" × 9.74" | 1 |
| Port | 16.19" × 9.74" | 1 |
