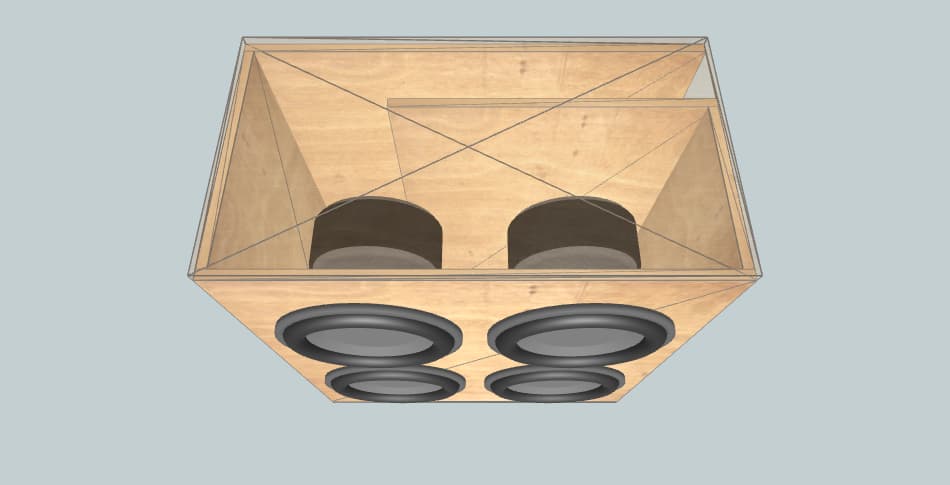

Box External Dimensions Width × Height × Depth |
21.00" × 30.00" × 17.81" |
| Material Thickness | 1.10" |
| Net Internal Volume | 4.20 ft3 |
| Tuning Frequency | 32 Hz |
| Port Area | 37.3 inch2 |
| Port Inlet Width × Height |
1.34" × 27.80" |
| Port Length | 15.89" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 21.00" × 17.81" | 2 |
| Front | 18.56" × 27.80" | 1 |
| Rear | 21.00" × 27.80" | 1 |
| Left | 15.62" × 27.80" | 1 |
| Right | 16.72" × 27.80" | 1 |
| Port | 13.18" × 27.80" | 1 |
