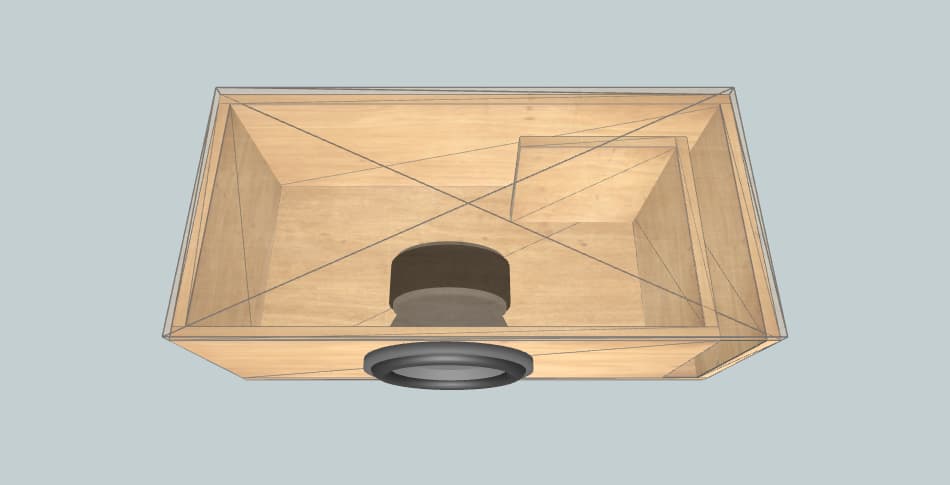

Box External Dimensions Width × Height × Depth |
33.46" × 14.37" × 16.27" |
| Material Thickness | 0.75" |
| Net Internal Volume | 2.47 ft3 |
| Tuning Frequency | 34 Hz |
| Port Area | 41.9 inch2 |
| Port Inlet Width × Height |
3.25" × 12.87" |
| Port Length | 31.54" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 33.46" × 16.27" | 2 |
| Front | 29.46" × 12.87" | 1 |
| Rear | 33.46" × 12.87" | 1 |
| Left | 14.77" × 12.87" | 1 |
| Right | 15.52" × 12.87" | 1 |
| Port | 11.52" × 12.87" | 1 |
| Port | 15.28" × 12.87" | 1 |
