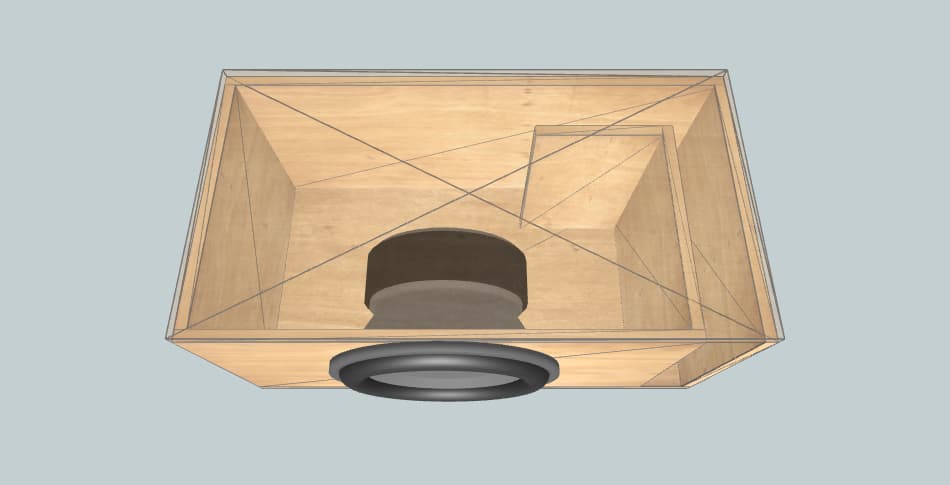

Box External Dimensions Width × Height × Depth |
50.00" × 18.00" × 20.19" |
| Material Thickness | 0.63" |
| Net Internal Volume | 5.50 ft3 |
| Tuning Frequency | 25 Hz |
| Port Area | 88 inch2 |
| Port Inlet Width × Height |
5.26" × 16.74" |
| Port Length | 57.52" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 50.00" × 20.19" | 2 |
| Front | 44.11" × 16.74" | 1 |
| Rear | 50.00" × 16.74" | 1 |
| Left | 18.93" × 16.74" | 1 |
| Right | 19.56" × 16.74" | 1 |
| Port | 13.68" × 16.74" | 1 |
| Port | 37.32" × 16.74" | 1 |
