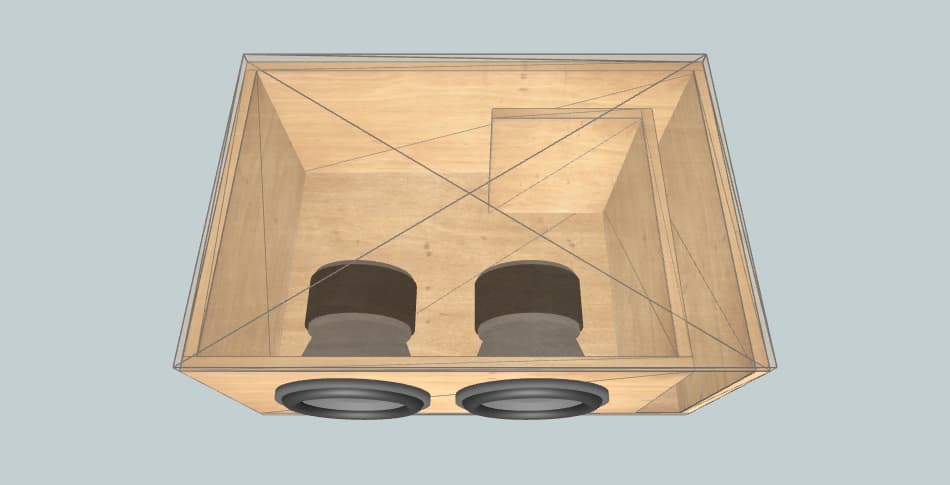

Subwoofer Box Specifications
Enclosure Name: 12 inch elite 1244
Subwoofer Brand: American Bass
Subwoofer Size: 12 inch
Subwoofer Count: 1
|
Box External Dimensions Width × Height × Depth |
30.00" × 16.00" × 19.08" |
| Material Thickness | 0.75" |
| Net Internal Volume | 2.50 ft3 |
| Tuning Frequency | 32.5 Hz |
| Port Area | 30 inch2 |
| Port Inlet Width × Height |
2.07" × 14.50" |
| Port Length | 23.91" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 30.00" × 19.08" | 2 |
| Front | 27.19" × 14.50" | 1 |
| Rear | 30.00" × 14.50" | 1 |
| Left | 17.59" × 14.50" | 1 |
| Right | 18.33" × 14.50" | 1 |
| Port | 15.52" × 14.50" | 1 |
| Port | 4.83" × 14.50" | 1 |
