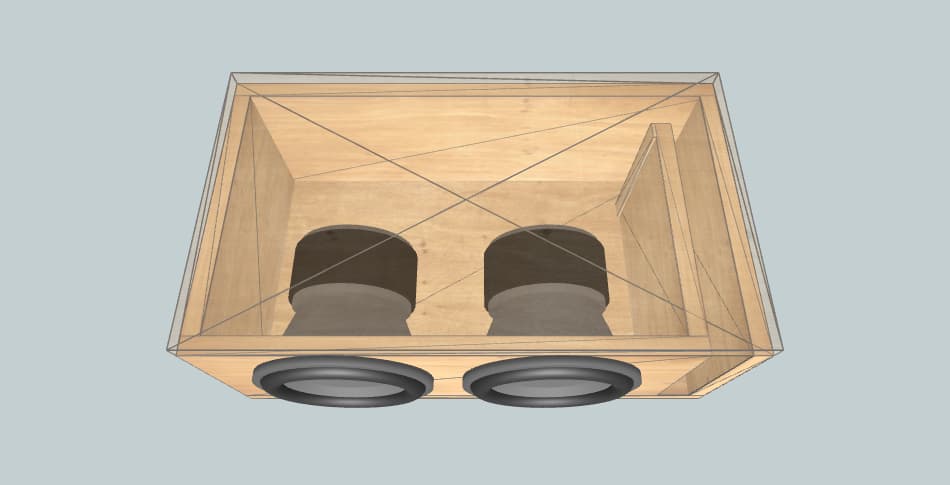

Box External Dimensions Width × Height × Depth |
36.00" × 15.00" × 15.04" |
| Material Thickness | 0.75" |
| Net Internal Volume | 3.50 ft3 |
| Tuning Frequency | 35 Hz |
| Port Area | 25 inch2 |
| Port Inlet Width × Height |
1.85" × 13.50" |
| Port Length | 9.61" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 36.00" × 15.04" | 2 |
| Front | 33.40" × 13.50" | 1 |
| Rear | 36.00" × 13.50" | 1 |
| Left | 13.54" × 13.50" | 1 |
| Right | 14.29" × 13.50" | 1 |
| Port | 8.86" × 13.50" | 1 |
