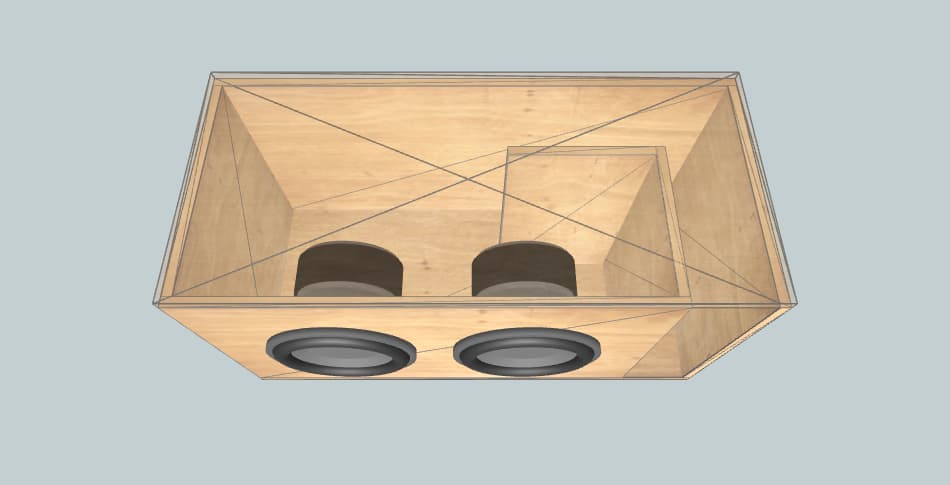

Subwoofer Box Specifications
Enclosure Name: Audiopipe
Subwoofer Size: 12 inch
Subwoofer Count: 2
|
Box External Dimensions Width × Height × Depth |
32.00" × 14.50" × 20.14" |
| Material Thickness | 0.34" |
| Net Internal Volume | 3.63 ft3 |
| Tuning Frequency | 30 Hz |
| Port Area | 55 inch2 |
| Port Inlet Width × Height |
3.98" × 13.82" |
| Port Length | 36.28" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 32.00" × 20.14" | 2 |
| Front | 27.68" × 13.82" | 1 |
| Rear | 32.00" × 13.82" | 1 |
| Left | 19.46" × 13.82" | 1 |
| Right | 19.80" × 13.82" | 1 |
| Port | 15.48" × 13.82" | 1 |
| Port | 16.15" × 13.82" | 1 |
