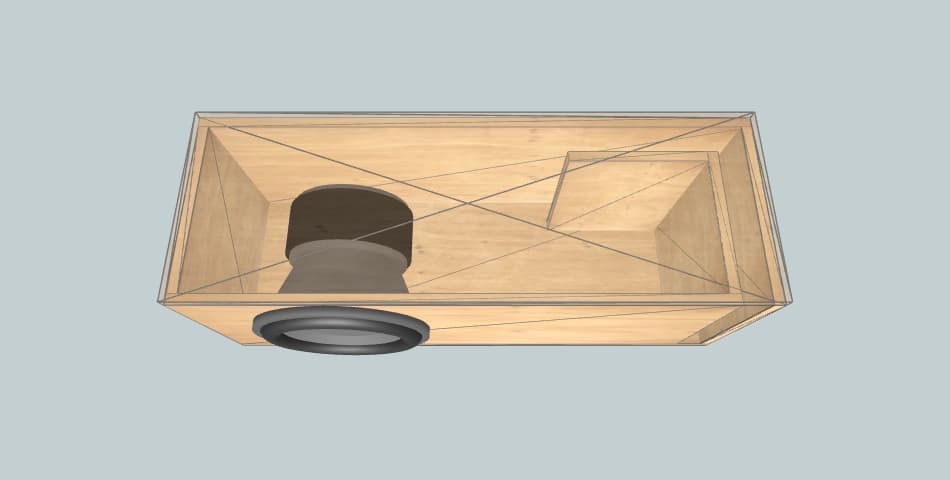

Box External Dimensions Width × Height × Depth |
23.62" × 17.72" × 12.24" |
| Material Thickness | 0.59" |
| Net Internal Volume | 2.01 ft3 |
| Tuning Frequency | 36 Hz |
| Port Area | 23.3 inch2 |
| Port Inlet Width × Height |
1.41" × 16.54" |
| Port Length | 18.12" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 23.62" × 12.24" | 2 |
| Front / Rear | 23.62" × 16.54" | 2 |
| Left | 11.06" × 16.54" | 1 |
| Right | 9.06" × 16.54" | 1 |
| Port | 18.12" × 16.54" | 1 |
