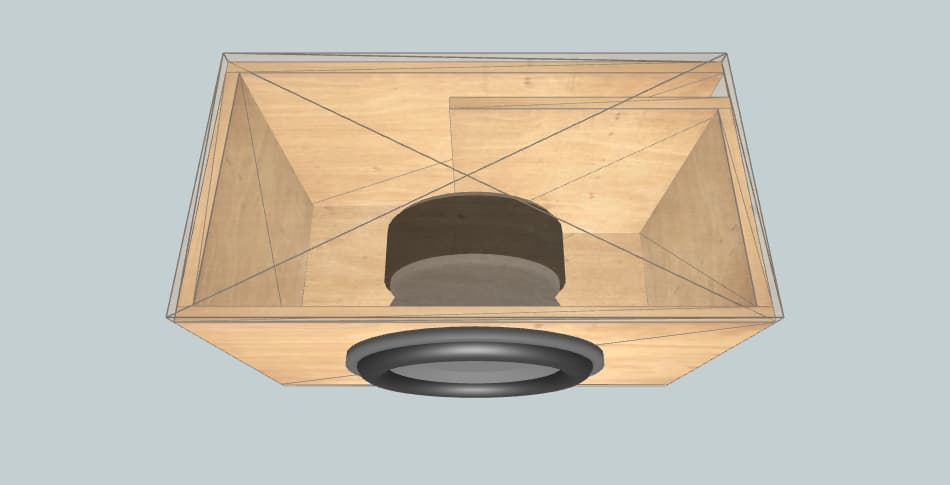

Box External Dimensions Width × Height × Depth |
40.00" × 20.00" × 23.04" |
| Material Thickness | 0.75" |
| Net Internal Volume | 8.00 ft3 |
| Tuning Frequency | 28 Hz |
| Port Area | 60 inch2 |
| Port Inlet Width × Height |
3.24" × 18.50" |
| Port Length | 16.32" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 40.00" × 23.04" | 2 |
| Front | 36.01" × 18.50" | 1 |
| Rear | 40.00" × 18.50" | 1 |
| Left | 21.54" × 18.50" | 1 |
| Right | 22.29" × 18.50" | 1 |
| Port | 15.57" × 18.50" | 1 |
