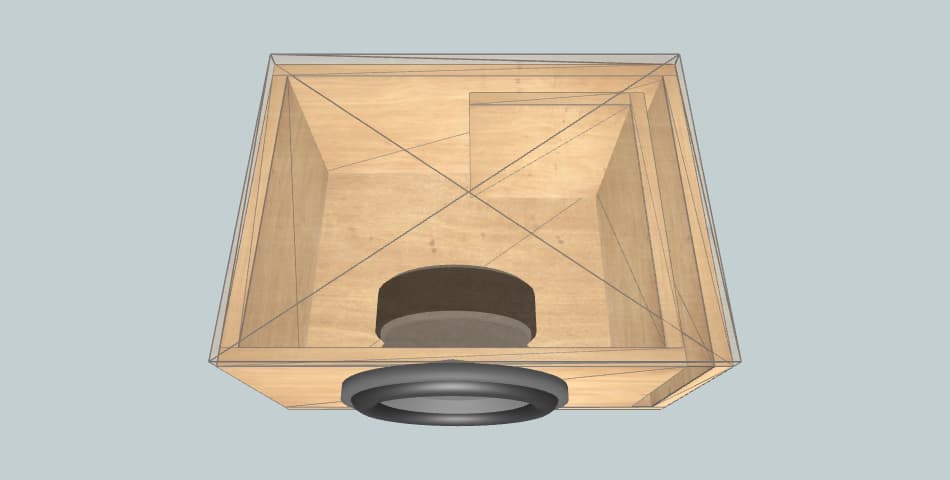

Box External Dimensions Width × Height × Depth |
20.00" × 13.37" × 11.25" |
| Material Thickness | 0.69" |
| Net Internal Volume | 1.00 ft3 |
| Tuning Frequency | 36 Hz |
| Port Area | 12 inch2 |
| Port Inlet Width × Height |
1.00" × 12.00" |
| Port Length | 20.72" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 20.00" × 11.25" | 2 |
| Front | 18.31" × 12.00" | 1 |
| Rear | 20.00" × 12.00" | 1 |
| Left | 9.87" × 12.00" | 1 |
| Right | 10.56" × 12.00" | 1 |
| Port | 8.87" × 12.00" | 1 |
| Port | 9.47" × 12.00" | 1 |
