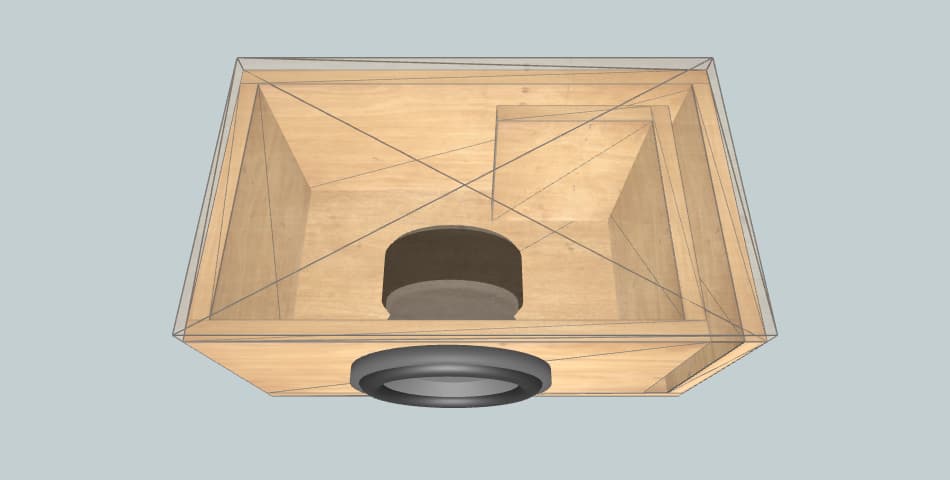

Enclosure Name: 37 part 2
Subwoofer Size: 8 inch
Subwoofer Count: 1
|
Box External Dimensions Width × Height × Depth |
17.00" × 10.00" × 20.54" |
| Material Thickness | 0.83" |
| Net Internal Volume | 1.25 ft3 |
| Tuning Frequency | 37 Hz |
| Port Area | 12.6 inch2 |
| Pipe Inner Diameter | 4.00" |
| Pipe Length | 15.84" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 17.00" × 20.54" | 2 |
| Front / Rear | 17.00" × 8.34" | 2 |
| Left / Right | 18.87" × 8.34" | 2 |
