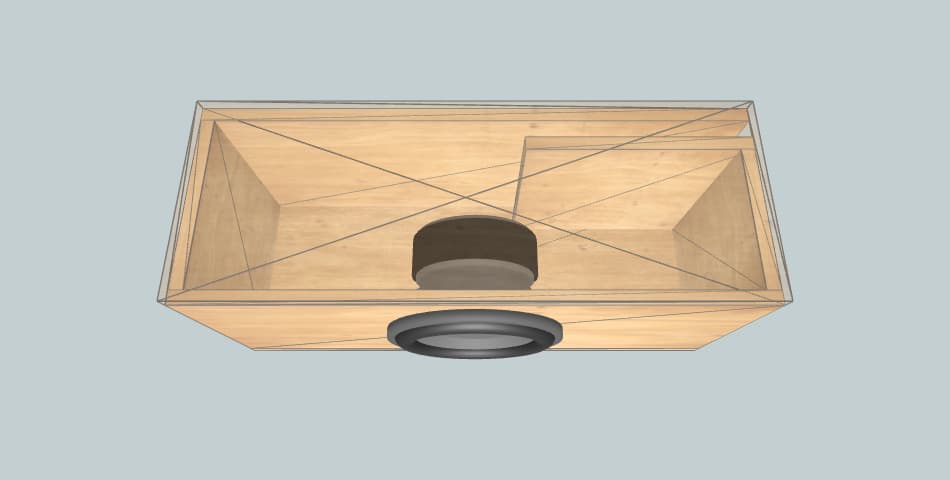

Box External Dimensions Width × Height × Depth |
20.00" × 13.00" × 16.26" |
| Material Thickness | 0.75" |
| Net Internal Volume | 1.30 ft3 |
| Tuning Frequency | 37 Hz |
| Port Area | 22.5 inch2 |
| Port Inlet Width × Height |
1.96" × 11.50" |
| Port Length | 28.27" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 20.00" × 16.26" | 2 |
| Front | 17.30" × 11.50" | 1 |
| Rear | 20.00" × 11.50" | 1 |
| Left | 14.76" × 11.50" | 1 |
| Right | 15.51" × 11.50" | 1 |
| Port | 12.80" × 11.50" | 1 |
| Port | 12.02" × 11.50" | 1 |
