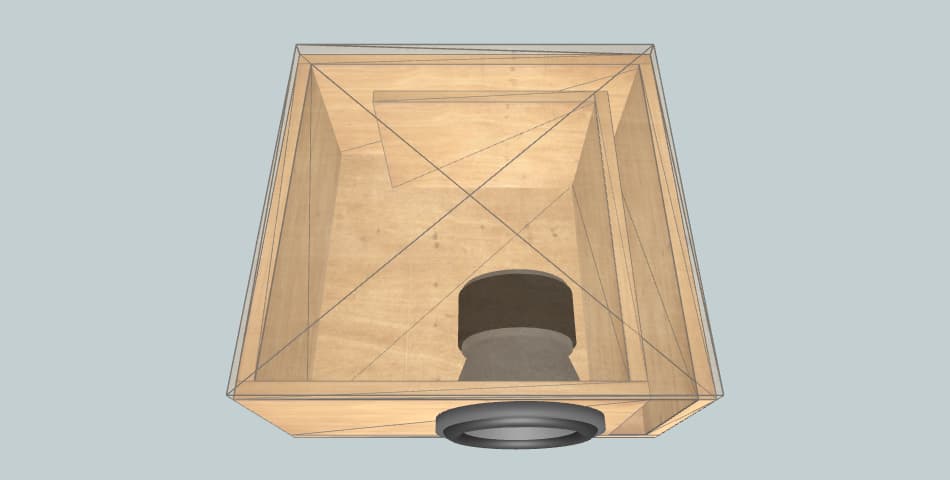

Subwoofer Box Specifications
Enclosure Name: SA-8 V3 D2
Subwoofer Brand: Sundown Audio
Subwoofer Size: 8 inch
Subwoofer Count: 1
|
Box External Dimensions Width × Height × Depth |
20.00" × 10.00" × 19.45" |
| Material Thickness | 0.75" |
| Net Internal Volume | 1.15 ft3 |
| Tuning Frequency | 33 Hz |
| Port Area | 17 inch2 |
| Port Inlet Width × Height |
2.00" × 8.50" |
| Port Length | 31.48" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 20.00" × 19.45" | 2 |
| Front | 17.25" × 8.50" | 1 |
| Rear | 20.00" × 8.50" | 1 |
| Left | 17.95" × 8.50" | 1 |
| Right | 18.70" × 8.50" | 1 |
| Port | 15.95" × 8.50" | 1 |
| Port | 12.03" × 8.50" | 1 |
