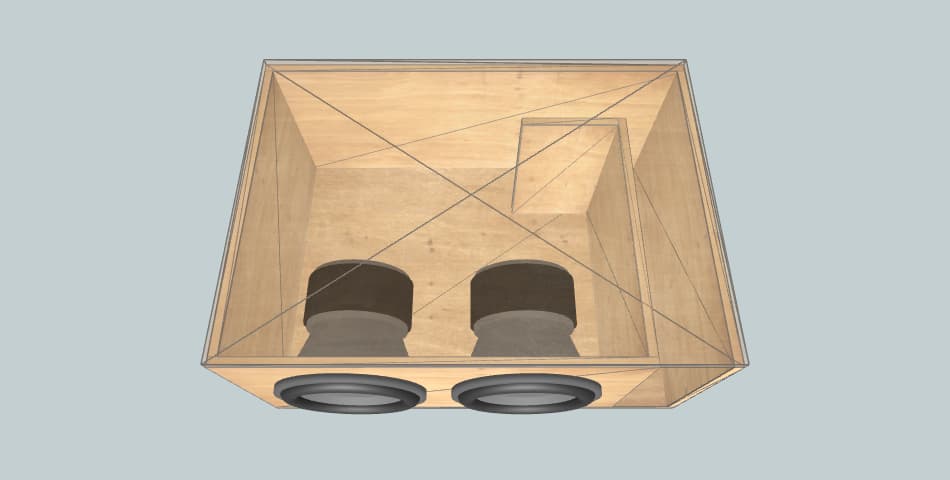

Box External Dimensions Width × Height × Depth |
31.50" × 15.75" × 16.93" |
| Material Thickness | 0.71" |
| Net Internal Volume | 3.53 ft3 |
| Tuning Frequency | 35 Hz |
| Port Area | 28.1 inch2 |
| Port Inlet Width × Height |
1.96" × 14.33" |
| Port Length | 11.00" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 31.50" × 16.93" | 2 |
| Front | 28.83" × 14.33" | 1 |
| Rear | 31.50" × 14.33" | 1 |
| Left | 15.51" × 14.33" | 1 |
| Right | 16.22" × 14.33" | 1 |
| Port | 10.30" × 14.33" | 1 |
